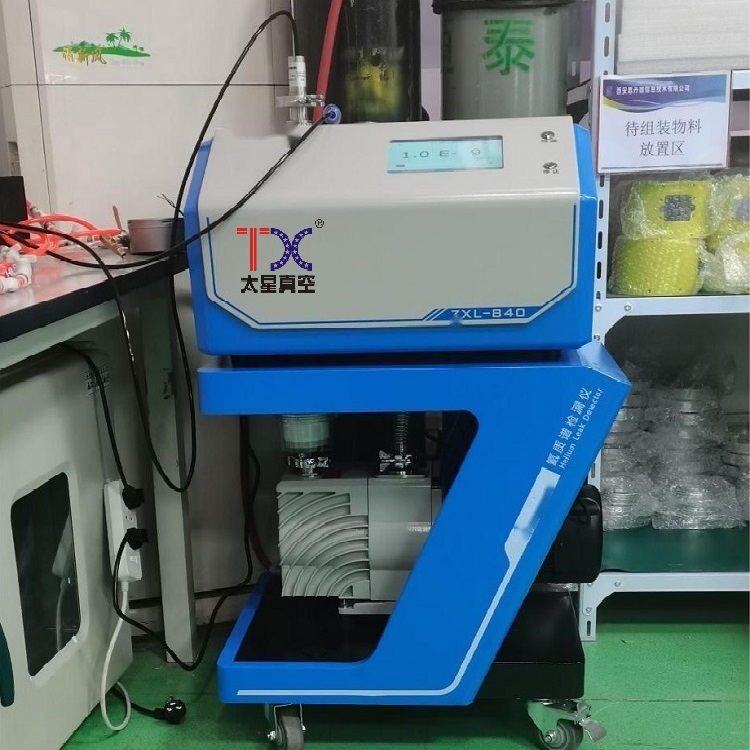

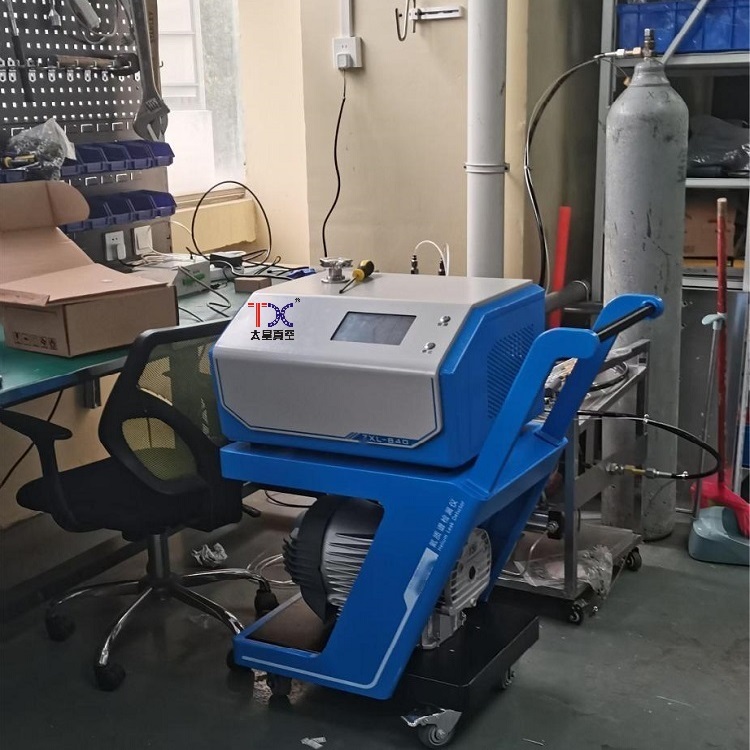

TXL-840D型 氦質譜檢漏儀干式檢漏 高潔凈


Product Introduction

●Portable and easy to move


●High pressure resistance of leak detection port
●Quick helium cleaning functionWide detection range
●One click reset of leak detection status
●Detection values can be stored
●Chinese and English menu interface

●The entire machine has reached the international advanced level

Main configuration

1.Imported molecular pump

2.Imported mechanical pump

3.Built in standard leak hole

4.American AD amplifier

5.Mass spectrometry dedicated module

6.Delta LCD touch color screen

Specification

1. Minimum detectable leakage rate: 3×10-13Pa ·m3/s

2. Leakage rate display range: 1×10? 1- 1×10-13Pa ·m3/s

3. Starting time: ≤ 3min

4. Response time: ≤ 0.5s

5. Maximum pressure at the leak detection port: 1500Pa

6. Mechanical pump pumping speed: 15 m3/h

7. Power requirements: 220V, 50Hz, single-phase, 10A

8. Working environment: 5-35 ℃

9. Relative humidity: ≤ 80%

10. Boundary dimension: 550(W)×420(D)×900(H)

11. Weight: 70kg
